電子顯微鏡用TEM網格片不分類產品總覽

產品服務專線：04-27080265 / 台中
02-89924292 / 台北

Graticules Optics公司所製造的TEM網格片憑藉著卓越的產品品質而得到全球眾多使用者的認可，每一片網格片在出廠前都會經過嚴格的品質管制檢查（Value Grids除外），確保您從樣品瓶中取出的任何一片網格片都是可用的。

Graticules Optics擁有電子顯微鏡所使用最多種類的TEM網格片產品支援，包括方形網孔(Square Mesh)、六邊形網孔(Hexagonal Mesh) 、取景器(Finders)、指標索引(Index)、開孔(Holes)、插槽(Slots)和各種材料的專業圖案樣式(Specialist Patterns)，以符合各種應用需求。

產品範圍包含有Maxtaform Grids、Embra Grids（Brandsma Grids）和Value Grids等系列，並提供銅(Copper)、銅銠合金(Copper/Rhodium)、鎳(Nickel)、金(Gold)、鉬(Molybdenum)、鈦(Titanium)、不銹鋼(Stainless Steel)、鋁(Aluminium)等等標準材料的選擇，也可提供客製化的網格(Custom Made Grids)和訂製的升降網格(Bespoke Lift-Out Grids)，歡迎您來電洽詢。

Square Mesh Grids方型網格 : 50Mesh 75Mesh 100Mesh 150Mesh 200Mesh 300Mesh 400Mesh 500Mesh 600Mesh
提供50-600 Mesh的方型刻劃網格。型號中HF與HR代表沒有中心點標記的網格，其中HR具有更細的格線，而3HG代表帶手柄的網格片，部份網格片有特製帶有中心標記和定位指針的圖樣。

Hexagonal Grids巢狀網格：7Mesh 90Mesh 100Mesh 135Mesh 180Mesh 270Mesh 360Mesh
提供7-360 Mesh的六角形刻劃網格，8HG代表帶手柄的網格片，100Mesh網格片帶有特製標記的圖樣。

Parallel Lines平行格線：84um 127um 165um 254um
平行線設計使可精確測量和比較物體的大小和形狀。

Slotted Staggered Mesh Grids長條型槽狀網格：50/200 75/300 100/400
長方型刻劃網格。

Finder Grids查找參照式網格： 100Mesh 200Mesh 300Mesh 400Mesh 7XC200
間隔位置有標記編號，以提供高倍電子顯微鏡在腔室中快速找到樣本定位。7XC系列為座標矩陣式標示。

Solid Hole and Slot Grids圓孔與槽狀孔： Hols Grid ( 0.4~2.0) Slot Grid(短邊0.2~0.98 / 長邊0.5~2.0)
給予樣品有適當的支撐網格片。

Folded Grids對摺式雙網格：50/50Mesh 100/100Mesh 200/200Mesh 100/200Mesh 100/300Mesh 100/400Mesh
交叉線設計且兩片網格可以對摺。

Freeze Fracture Tissue Processing Screen冷凍切斷組織處理：75Mesh 150Mesh 200Mesh 300Mesh
提供冷凍電子顯微鏡專用網格片。

TEM support films網格塗層支撐膜：Formvar Formvar+Carbon Pioloform Pioloform+Carbon
特製透明支撐薄膜。

Specialist Patterns特殊設計網格： H7 H2A FIB-Out-Cu FIB-Out-Mo Chien-Grid HighOpen
專為特定應用所設計的網格片。

※另外提供網格片收納盒 New TEM Grid Storage Boxes

Brochure TEM電子顯微鏡專用網格片

方型網格

Square Mesh Grids

50 Mesh (1G_50)

50 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.083mm +/-0.005mm
Hole Size	0.425mm +/-0.005mm
Overall Diameter	3.0/3.05mm

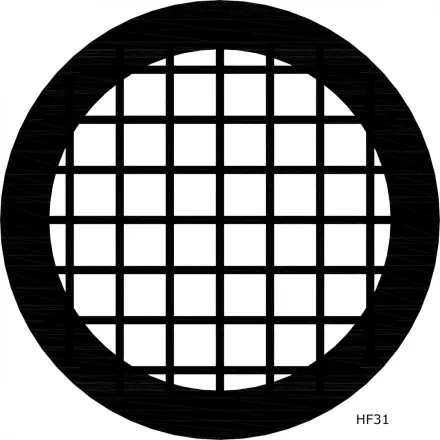

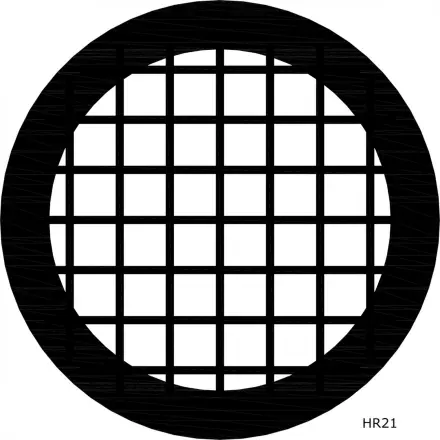

75 Mesh

75 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.050mm +/-0.003mm (HR21) 0.055mm +/-0.005mm (1G_75) 0.060mm +/-0.003mm (HF31)
Hole Size	0.284mm +/-0.005mm (HR21) 0.284mm +/-0.005mm (1G_75) 0.0279 +/-0.003mm (HF31)
Overall Diameter	3.0/3.05mm

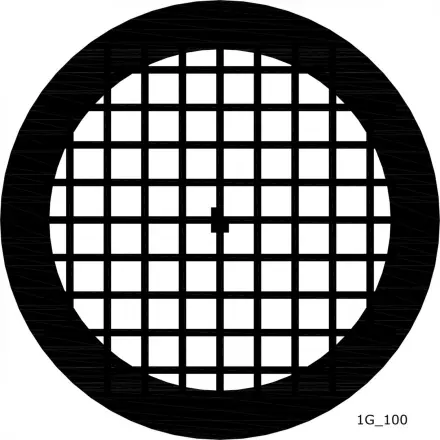

100 Mesh

100 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.041mm +/-0.003mm (HF22) 0.050mm +/-0.005mm (1G_100) 0.050mm +/-0.005mm (HF32)
Hole Size	0.213mm +/-0.003mm (HR22) 0.204mm +/-0.005mm (1G_100) 0.204mm +/-0.005mm (HF32)
Overall Diameter	3.0/3.05mm

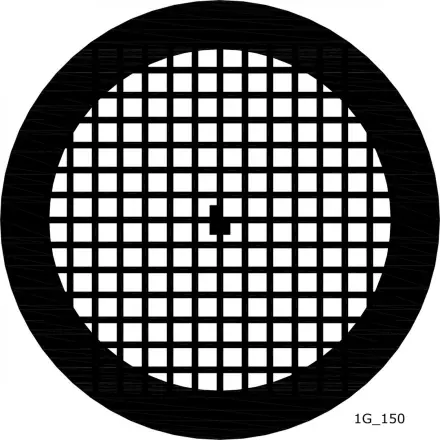

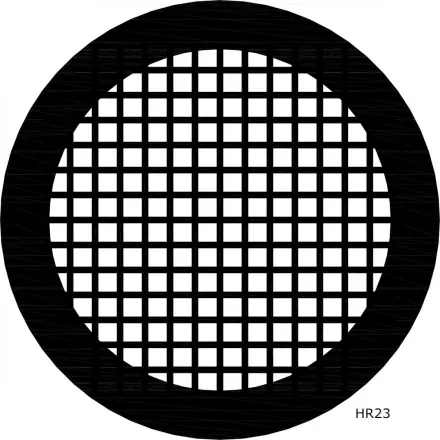

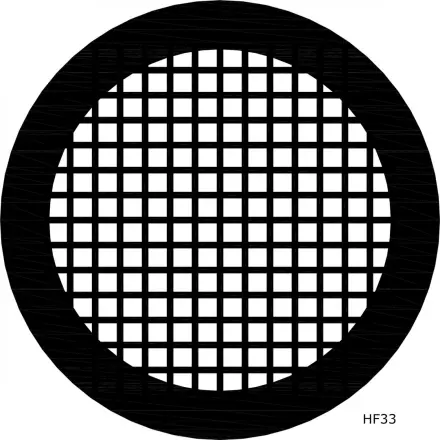

150 Mesh

150 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.034mm +/-0.002mm (HR23) 0.044mm +/-0.005mm (1G_150) 0.038mm +/-0.002mm (HF33)
Hole Size	0.131mm +/-0.002mm (HR23) 0.125mm +/-0.005mm (1G_150) 0.131mm +/-0.002mm (HF33)
Overall Diameter	3.0/3.05mm

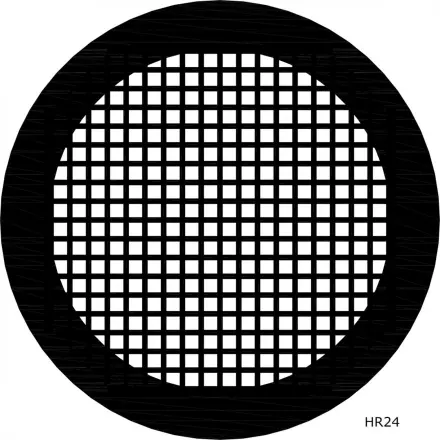

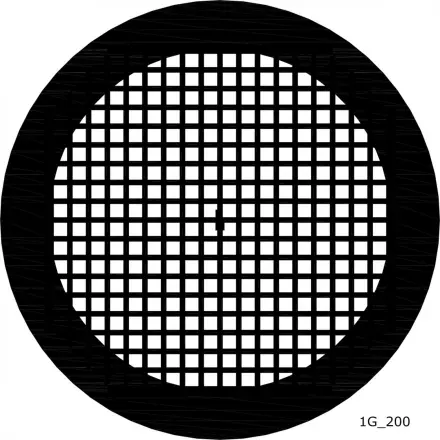

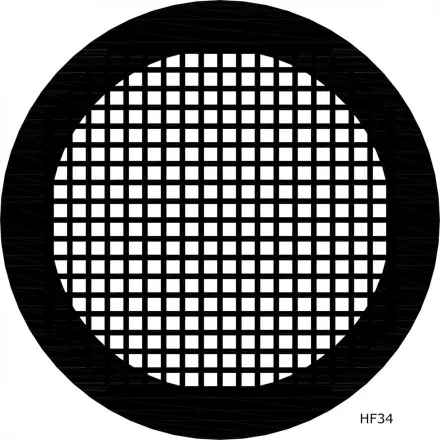

200 Mesh

200 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.024mm +/-0.002mm (HR24) 0.037mm +/-0.005mm (1G_200) 0.026mm +/-0.002mm (HF34)
Hole Size	0.103mm +/-0.002mm (HR24) 0.09mm +/-0.005mm (1G_200) 0.101mm +/-0.002mm (HF34)
Overall Diameter	3.0/3.05mm

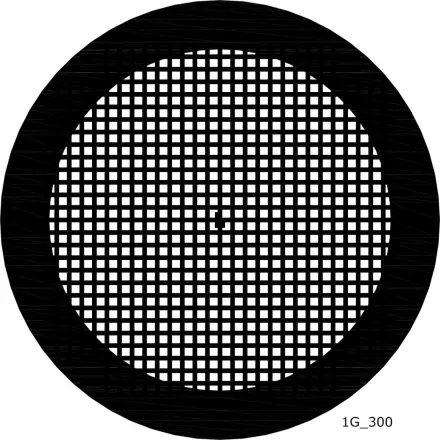

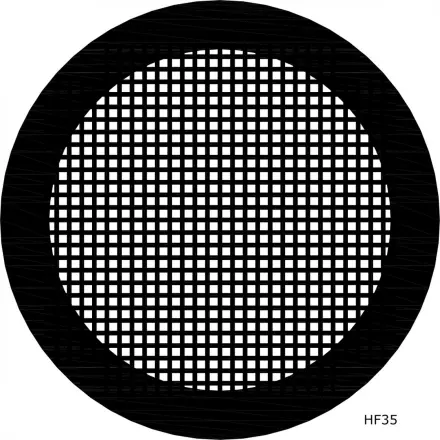

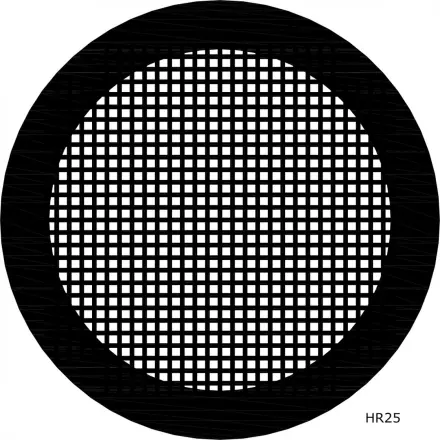

300 Mesh

300 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.025mm +/-0.002mm (HF35) 0.023mm +/-0.002mm (HR25) 0.031mm +/-0.005mm (1G_300)
Hole Size	0.060mm +/-0.002mm (HF35) 0.061mm +/-0.002mm (HR25) 0.054mm +/-0.005mm (1G_300)
Overall Diameter	3.0/3.05mm

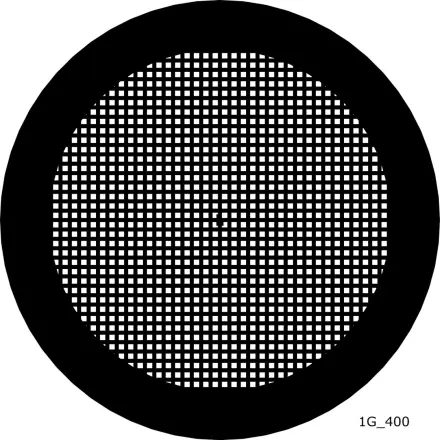

400 Mesh

400 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.020mm +/-0.002mm (HR26) 0.026mm +/-0.005mm (1G_400) 0.023mm +/-0.002mm (HF36)
Hole Size	0.043mm +/-0.002mm (HR26) 0.038mm +/-0.005mm (1G_400) 0.041mm +/-0.002mm (HF36)
Overall Diameter	3.0/3.05mm

500 Mesh

500 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.023mm +/-0.005mm
Hole Size	0.028mm +/-0.005mm
Overall Diameter	3.0/3.05mm

600 Mesh

600 Mesh Squares Grid for Electron Microscopy

Bar Thickness	0.015mm +/-0.005mm
Hole Size	0.026mm +/-0.005mm
Overall Diameter	3.0/3.05mm

50 Mesh Grid with Handle (3HG_50)

50 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.083mm +/-0.005mm
Hole Size	0.425mm +/-0.005mm
Overall Diameter	3.0/3.05mm

75 Mesh Grid with Handle (3HG_75)

75 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.055mm +/-0.005mm
Hole Size	0.284mm +/-0.005mm
Overall Diameter	3.0/3.05mm

100 Mesh Grid with Handle (3HG_100)

100 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.050mm +/-0.005mm
Hole Size	0.204mm +/-0.005mm
Overall Diameter	3.0/3.05mm

150 Mesh Grid with Handle (3HG_150)

150 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.044mm +/-0.005mm
Hole Size	0.125mm +/-0.005mm
Overall Diameter	3.0/3.05mm

200 Mesh Grid with Handle (3HG_200)

200 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.037mm +/-0.005mm
Hole Size	0.09mm +/-0.005mm
Overall Diameter	3.0/3.05mm

300 Mesh Grid with Handle (3HG_300)

300 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.031mm +/-0.005mm
Hole Size	0.054mm +/-0.005mm
Overall Diameter	3.0/3.05mm

400 Mesh Grid with Handle (3HG_400)

400 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.026mm +/-0.005mm
Hole Size	0.038mm +/-0.005mm
Overall Diameter	3.0/3.05mm

500 Mesh Grid with Handle (3HG_500)

500 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.023mm +/-0.005mm
Hole Size	0.028mm +/-0.005mm
Overall Diameter	3.0/3.05mm

600 Mesh Grid with Handle (3HG_600)

600 Mesh Squares Grid with Handle for Electron Microscopy

Bar Thickness	0.015mm +/-0.005mm
Hole Size	0.026mm +/-0.005mm
Overall Diameter	3.0/3.05mm

巢狀網格

Hexagonal Grids

7 Mesh (1G_7HEX)

7 Large Hexagonal shaped Holes Grid for Electron Microscopy

Bar Thickness	0.085mm +/-0.020mm
Hole Size	0.525mm x 0.604mm +/-0.020mm
Overall Diameter	3.0/3.05mm

90 Mesh (8G_90)

90 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

Bar Thickness	0.048mm +/-0.005mm
Hole Size	0.224mm x 0.269mm +/-0.005mm
Overall Diameter	3.0/3.05mm

100 Mesh (H5)

100 Mesh Hexagonal shaped Grid for Electron Microscopy

Bar Thickness	0.025mm +/-0.002mm
Hole Size	0.205mm x 0.237mm +/-0.002mm
Overall Diameter	3.0/3.05mm

135 Mesh (8G_135)

135 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

Bar Thickness	0.036mm +/-0.005mm
Hole Size	0.148mm x 0.172mm +/-0.005mm
Overall Diameter	3.0/3.05mm

180 Mesh (8G_180)

180 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

Bar Thickness	0.028mm +/-0.005mm
Hole Size	0.111mm x 0.129mm +/-0.005mm
Overall Diameter	3.0/3.05mm

270 Mesh (8G_270)

270 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Bar Thickness	0.024mm +/-0.005mm
Hole Size	0.062mm x 0.075mm +/-0.005mm
Overall Diameter	3.0/3.05mm

360 Mesh (8G_360)

360 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Overall Diameter	3.0/3.05mm

7 Hexagon Holes Grid with Handle (3HG_7HEX)

7 Large Hexagonal shaped Holes Grid with Handle for Electron Microscopy.

Bar Thickness	0.085mm +/-0.020mm
Hole Size	0.525mm x 0.604mm +/-0.020mm
Overall Diameter	3.0/3.05mm

90 Mesh Hexagonal Grid with Handle (8HG_90)

90 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Bar Thickness	0.048mm +/-0.005mm
Hole Size	0.224mm x 0.269mm +/-0.005mm
Overall Diameter	3.0/3.05mm

135 Mesh Hexagonal Grid with Handle (8HG_135)

135 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Bar Thickness	0.036mm +/-0.005mm
Hole Size	0.148mm x 0.172mm +/-0.005mm
Overall Diameter	3.0/3.05mm

180 Mesh Hexagonal Grid with Handle (8HG_180)

180 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Bar Thickness	0.028mm +/-0.005mm
Hole Size	0.111mm x 0.129mm +/-0.005mm
Overall Diameter	3.0/3.05mm

270 Mesh Hexagonal Grid with Handle (8HG_270)

270 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Bar Thickness	0.024mm +/-0.005mm
Hole Size	0.062mm x 0.075mm +/-0.005mm
Overall Diameter	3.0/3.05mm

360 Mesh Hexagonal Grid with Handle (8HG_360)

360 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

Overall Diameter	3.0/3.05mm

平行線

Parallel Lines

84µm Pitch Parallel Lines (1G_300L)

0.084mm (84µm) Pitch Parallel Lines Grid for Electron Microscopy

Bar Thickness	0.022mm +/-0.005mm
Space Size	0.062mm +/-0.005mm
Overall Diameter	3.0/3.05mm

127µm Pitch Parallel Lines (1G_200L / HF46)

0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy.

Bar Thickness	0.025mm +/-0.005mm (1G_200L) 0.035mm +/-0.002mm (HF46)
Space Size	0.102mm +/-0.005mm (1G_200L) 0.092mm +/-0.002mm (HF46)
Overall Diameter	3.0/3.05mm

165µm Pitch Parallel Lines (HF45)

0.165mm (165µm) Pitch Parallel Lines Grid for Electron Microscopy

Overall Diameter	3.0/3.05mm

254µm Pitch Parallel Lines (1G_100L)

0.254mm (254µm) Pitch Parallel Lines Grid for Electron Microscopy

Bar Thickness	0.050mm +/-0.005mm
Space Size	0.204mm +/-0.005mm
Overall Diameter	3.0/3.05mm

84µm Pitch with Divider (1G_300LD)

0.084mm (84µm) Pitch Parallel Lines with Central Dividing bar Grid for Electron Microscopy

Bar Thickness	0.022mm +/-0.005mm
Space Size	0.062mm +/-0.005mm
Overall Diameter	3.0/3.05mm

127µm Pitch with Divider (1G_200LD / HF44)

0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy

Bar Thickness	0.035mm +/-0.005mm (1G_200LD) 0.035mm +/-0.002mm (HF44)
Space Size	0.92mm +/-0.005mm (1G_200LD) 0.92mm +/-0.002mm (HF44)
Overall Diameter	3.0/3.05mm

84µm Pitch with Divider and Handle (3HG_300LD)

0.084mm (84µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

Bar Thickness	0.022mm +/-0.005mm
Space Size	0.062mm +/-0.005mm
Overall Diameter	3.0/3.05mm

127µm Pitch with Divider and Handle (3HG_200LD)

0.127mm (127µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

Bar Thickness	0.025mm +/-0.005mm
Space Size	0.102mm +/-0.005mm
Overall Diameter	3.0/3.05mm

254µm Pitch with Divider and Handle (3HG_100LD)

0.254mm (254µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

Bar Thickness	0.050mm +/-0.005mm
Space Size	0.204mm +/-0.005mm
Overall Diameter	3.0/3.05mm

127µm Pitch with Handle (3HG_200L)

0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy

Bar Thickness	0.025mm +/-0.005mm
Space Size	0.102mm +/-0.005mm
Overall Diameter	3.0/3.05mm

254µm Pitch with Handle (3HG_100L)

0.254mm (254µm) Pitch Parallel Lines Grid for Electron Microscopy

Bar Thickness	0.050mm +/-0.005mm
Space Size	0.204mm +/-0.005mm
Overall Diameter	3.0/3.05mm

槽狀網格

Slotted Staggered Mesh Grids

50/200 Slotted Grid (1G_50/200)

50 x 200 Mesh Rectangular Shape Grid for Electron Microscopy

Bar Thickness	0.040mm +/-0.005mm
Hole Sizes	0.425mm / 0.087mm +/-0.005mm
Overall Diameter	3.0/3.05mm

75/300 Slotted Grid (1G_75/300 / HF41 / HR27)

75 x 300 Mesh Rectangular Shape Grid for Electron Microscopy

Bar Thickness	0.030mm +/-0.005mm (1G_75/300) 0.023mm +/-0.002mm (HF41) 0.023mm +/-0.002mm (HR27)
Hole Size	0.285mm / 0.055mm +/-0.005mm (1G_75/300) 0.278mm / 0.059mm +/-0.002mm (HF41) 0.028mm / 0.061mm +/-0.002mm (HR27)
Overall Diameter	3.0/3.05mm

100/400 Slotted Grid (1G_100/400 / HF42)

100 x 400 Mesh Rectangular Shape Grid for Electron Microscopy

Bar Thickness	0.023mm +/-0.005mm
Hole Size	0.231mm / 0.40mm +/-0.005mm
Overall Diameter	3.0/3.05mm

50/200 Slotted Grid with Handle (3HG_50/200)

50 x 200 Mesh Rectangular Shape Grid with Handle for Electron Microscopy

Bar Thickness	0.40mm +/-0.005mm
Hole Sizes	0.425mm / 0.087mm +/-0.005mm
Overall Diameter	3.0/3.05mm

75/300 Slotted Grid with Handle (3HG_75/300)

75 x 300 Mesh Rectangular Shape Grid with Handle for Electron Microscopy

Bar Thickness	0.030mm +/-0.005mm
Hole Sizes	0.288mm / 0.055mm +/-0.005mm
Overall Diameter	3.0/3.05mm

查找參照式網格

Finder Grids

100 Mesh Finder Grid (7FG_100)

100 Mesh Finder Grid for Electron Microscopy with Centre crossline of four squares identified with letters A to L

Overall Diameter	3.0/3.05mm

200 Mesh Finder Grid (7FG_200)

200 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-I

Thin Bar Thickness	0.038mm +/-0.005mm
Thick Bar Thickness	0.064mm +/-0.005mm
Hole Sizes	0.089mm +/-0.005mm
Overall Diameter	3.0/3.05mm

300 Mesh Finder Grid (7FG_300)

300 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-U

Thin Bar Thickness	0.040mm +/-0.005mm
Thick Bar Thickness	0.048mm +/-0.004mm
Hole Sizes	0.066mm +/-0.004mm
Overall Diameter	3.0/3.05mm

400 Mesh Finder Grid (7FG_400)

400 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-Z-A-K

Thin Bar Thickness	0.020mm +/-0.004mm
Thick Bar Thickness	0.047mm +/-0.004mm
Hole Size	0.044mm +/-0.004mm
Overall Diameter	3.0/3.05mm

200 Mesh London Finder Grid (H2)

200 Mesh Original London Finder Grid for Electron Microscopy. Ideal for Asbestos TEM Analysis.

Overall Diameter	3.0/3.05mm

100 Mesh Finder Grid with Handle (7HFG_100)

100 Mesh Finder Grid for Electron Microscopy with Centre crossline of four squares identified with letters A to L with Handle.

Overall Diameter	3.0/3.05mm

200 Mesh Finder Grid with Handle (7HFG_200)

200 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-I.

Thin Bar Thickness	0.029mm +/-0.005mm
Thick Bar Thickness	0.055mm +/-0.005mm
Hole Sizes	0.098mm +/-0.005mm
Overall Diameter	3.0/3.05mm

300 Mesh Finder Grid with Handle

300 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-U.

Thin Bar Thickness	0.018mm +/-0.004mm
Thick Bar Thickness	0.043mm +/-0.004mm
Hole Sizes	0.066mm +/-0.004mm
Overall Diameter	3.0/3.05mm

400 Mesh Finder Grid with Handle (7HFG_400)

400 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-Z-A-K.

Thin Bar Thickness	0.020mm +/-0.004mm
Thick Bar Thickness	0.047mm +/-0.004mm
Hole Sizes	0.044mm +/-0.004mm
Overall Diameter	3.0/3.05mm

200 Mesh Copper Index Grid (7XC200)

200 Mesh Copper Index Grid, AHERA type, indexed 1-10 and A-J, 100pcs/vial.

Bar Thickness, Nominal	0.030mm
Size/Material	200 Mesh, Copper
Hole Size, Nominal	0.030mm
Overall Diameter	3.0/3.05mm

AHERA Type Copper Index Grid (7XC200B)

Copper Index Grid, AHERA type, indexed 1-15 and A-O, 100pcs/vial.

Bar Thickness, Nominal	0.030mm
Size/Material	Copper, 100µm x 100µm hole
Hole Size, Nominal	0.100mm x 0.100mm
Overall Diameter	3.0/3.05mm

圓孔與槽狀孔

Solid Hole and Slot Grids

0.4mm Hole Grid (1G_4H)

0.4mm (400µm) Hole Grid for Electron Microscopy.

Hole Size	Cu, Ni, Au: 0.400mm +/-0.020mm, Ti, Mo, SS: 0.450mm +/-0.020mm
Overall Diameter	3.0/3.05mm

0.6mm Hole Grid (1G_6H / HF48)

0.6mm (600µm) Hole Grid for Electron Microscopy.

Hole Size	0.600mm +/-0.010mm
Overall Diameter	3.0/3.05mm

0.8mm Hole Grid (1G_8H)

0.8mm (800µm) Hole Grid for Electron Microscopy.

Hole Size	0.800mm +/-0.020mm
Overall Diameter	3.0/3.05mm

1.0mm Hole Grid (1G_10H / HF47)

1.0mm (1000µm) Hole Grid for Electron Microscopy.

Hole Size	Cu, Ni, Au: 1.000mm +0.020/-0.020mm (1G_10H), 1.000mm +/-0.010mm (HF47)
Hole Size	Ti, Mo, Al, SS: 1.000mm +0.10/-0.0mm
Overall Diameter	3.0/3.05mm

1.5mm Hole Grid (1G_15H)

1.5mm (1500µm) Hole Grid for Electron Microscopy.

Hole Size	1.500mm +/-0.020mm
Overall Diameter	3.0/3.05mm

2.0mm Hole Grid (1G_20H)

2.0mm (2000µm) Hole Grid for Electron Microscopy.

Hole Size	2.000mm +/-0.020mm
Overall Diameter	3.0/3.05mm

0.2mm x 0.5mm Slot Grid (HF51)

0.2mm x 0.5mm (200µm x 500µm) Slot Grid for Electron Microscopy.

Hole Size	0.200mm x 0.500mm +/-0.010mm
Overall Diameter	3.0/3.05mm

0.2mm x 1.5mm Slot Grid (HF50)

0.2mm x 1.5mm (200µm x 1500µm) Slot Grid for Electron Microscopy.

Hole Size	0.200mm x 1.500mm +/-0.010mm
Overall Diameter	3.0/3.05mm

2.0mm x 0.42mm Slot Grid (1G_42S)

2.0mm x 0.42mm (2000µm x 420µm) Slot Grid for Electron Microscopy.

Hole Size	0.420mm x 2.000mm +/-0.020mm
Overall Diameter	3.0/3.05mm

2.0mm x 0.98mm Slot Grid (1G_12S)

2.0mm x 0.98mm (2000µm x 980µm) Slot Grid for Electron Microscopy.

Hole Size	2.000mm x 0.980mm +/-0.020mm
Overall Diameter	3.0/3.05mm

0.4mm Hole Grid with Handle (3HG_4H)

0.4mm (400µm) Hole Grid with Handle for Electron Microscopy.

Hole Size	0.400mm +/-0.020mm
Overall Diameter	3.0/3.05mm

0.6mm Hole Grid with Handle (3HG_6H)

0.6mm (600µm) Hole Grid with Handle for Electron Microscopy.

Hole Size	0.600mm +/-0.020mm
Overall Diameter	3.0/3.05mm

0.8mm Hole Grid with Handle (3HG_8H)

0.8mm (800µm) Hole Grid with Handle for Electron Microscopy.

Hole Size	0.800mm +/-0.020mm
Overall Diameter	3.0/3.05mm

1.0mm Hole Grid with Handle (3HG_10H)

1.0mm (1000µm) Hole Grid with Handle for Electron Microscopy.

Hole Size	1.000mm +/-0.020mm
Overall Diameter	3.0/3.05mm

1.5mm Hole Grid with Handle (3HG_15H)

1.5mm (1500µm) Hole Grid with Handle for Electron Microscopy.

Hole Size	1.500mm +/-0.020mm
Overall Diameter	3.0/3.05mm

2.0mm x 0.42mm Slot Grid with Handle (3HG_42S)

2.0mm x 0.42mm (2000µm x 420µm) Slot Grid with Handle for Electron Microscopy.

Hole Size	0.420mm x 2.000mm +/-0.020mm
Overall Diameter	3.0/3.05mm

2.0mm x 0.98mm Slot Grid with Handle (3HG_12S)

2.0mm x 0.98mm (2000µm x 980µm) Slot Grid with Handle for Electron Microscopy.

Hole Size	0.980mm x 2.000mm +/-0.020mm
Overall Diameter	3.0/3.05mm

對摺式雙網格

Folded Grids

50/50 Mesh Folding Grid (4G_F50/50)

Folding Grid with "clip" 50 Mesh Squares on both sides for Electron Microscopy.

Bar Thickness	0.083mm +/-0.005mm
Hole Size	0.425mm +/-0.005mm
Grid Diameter	3.0/3.05mm

100/100 Mesh Folding Grid (4G_F100/100)

Folding Grid with "clip" 100 Mesh Squares on both sides for Electron Microscopy.

Bar Thickness	0.049mm +/-0.005mm
Hole Size	0.205mm +/-0.005mm
Grid Diameter	3.0/3.05mm

200/200 Mesh Reference Folding Grid (H12)

Folding Grid with "clip" 200 Mesh one side (H1), 200 mesh reference pattern the other side (H2) for Electron Microscopy.

Overall Diameter	3.0/3.05mm

100/200 Mesh Folding Grid (4G_F100/200)

Folding Grid with "clip" 100 Mesh one side, 200 mesh squares the other side for Electron Microscopy.

Bar Thickness	0.049mm & 0.037mm +/-0.005mm
Hole Size	0.205mm & 0.09mm +/-0.005mm
Grid Diameter	3.0/3.05mm

100/300 Mesh Folding Grid (4G_F100/300)

Folding Grid with "clip" 100 Mesh one side, 300 mesh squares the other side for Electron Microscopy.

Bar Thickness	0.049mm & 0.037mm +/-0.005mm
Hole Size	0.205mm & 0.047mm +/-0.005mm
Grid Diameter	3.0/3.05mm

100/400 Mesh Folding Grid (4G_F100/400)

Folding Grid with "clip" 100 Mesh one side, 400 mesh squares the other side for Electron Microscopy.

Bar Thickness	0.035mm & 0.026mm +/-0.005mm
Hole Size	0.219mm & 0.038mm +/-0.005mm
Grid Diameter	3.0/3.05mm

冷凍切斷組織處理

Freeze Fracture Tissue Processing Screen

75 Mesh Freeze Fracture Grid (5G_75FF)

75 Mesh Grid for Electron Microscopy with a Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

Overall Diameter	3.0/3.05mm

200 Mesh Freeze Fracture Grid (HF14)

200 Mesh Grid for Electron Microscopy with a Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

Overall Diameter	3.0/3.05mm

75 Mesh Freeze Fracture Grid with Handle (5HG_75FF)

75 Mesh Grid for Electron Microscopy with Handle. A Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

Overall Diameter	3.0/3.05mm

150 Mesh Tissue Processing Screen (6G_150)

150 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

Overall Diameter	3.0/3.05mm

200 Mesh Tissue Processing Screen (6G_200)

200 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

Overall Diameter	3.0/3.05mm

300 Mesh Tissue Processing Screen (6G_300)

300 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

Overall Diameter	3.0/3.05mm

網格塗層支撐膜

TEM support films

Formvar Only Coated TEM Grids

Formvar film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Film Coating	Formvar only

Formvar/Carbon Coated TEM Grids

Formvar/Carbon film coatings on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Film Coating	Formvar/Carbon

Pioloform Only Coated TEM Grids

Pioloform film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Film Coating	Pioloform only

Pioloform/Carbon Coated TEM Grids

Pioloform/Carbon film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Film Coating	Pioloform/Carbon

特殊設計網格

Specialist Patterns

400 Mesh Reference Grid (H7)

400 Mesh Reference Grid for Electron Microscopy with Centre Mark and Locating Pointer.

Overall Diameter	3.0/3.05mm

200 Mesh Copper Reference Grid (H2A)

200 Mesh Ahera Type Reference/Finder Grid for Electron Microscopy. Designed for Asbestos TEM Analysis.

Bar Widths	Nominally 25um and 35um
Overall Diameter	3.0/3.05mm
Hole Size	Nominally 95um x 95um

GO FIB Cu

Pins numerically annotated, well-defined shape and form, shallow downset for improved performance.

3-Post Copper	End pins 180um wide, 200um length with 'V' shaped tip. Centre pin 80um wide, 200um length. 20um width shelf.
4-Post Copper	End pins 180um wide, 200um length with 'V' shaped tip. Centre pins 80um wide, 200um length. 20um width shelf.
5-Post Copper	All pins 60um wide, 200um length. 20um width shelf.
8-Post Copper	All pins 60um wide, 200um length. 20um width shelf.
Grid Thickness	Nominally 35um

GO FIB Mo

Pins individually annotated, well-defined shape and form.

3-Post FIB Lift-Out	End posts 180um wide, 200um length with 'V' shaped end. Centre post 80um wide, 200um length.
4-Post FIB Lift-Out	End posts 180um wide, 200um length with 'V' shaped end. Centre posts 80um wide, 200um length.
5-Post FIB Lift-Out	All posts 60um wide, 200um length.
8-Post FIB Lift-Out	All posts 60um wide, 200um length. 20um.
Grid Thickness	25um

Chien Grid (9G_20H)

Specialist Electron Microscopy Grid for Specimen Transfer.

Overall Diameter	3.0/3.05mm

200 Mesh Grid with High Open Area (11G_200)

200 Mesh Grid for Electron Microscopy with Thinner bars for greater specimen exposure.

Overall Diameter	3.0/3.05mm

400 Mesh Grid with High Open Area (11G_400)

400 Mesh Grid for Electron Microscopy with Thinner bars for greater specimen exposure.

Bar Thickness	0.017mm ±0.003mm
Hole Size	0.047mm ±0.003mm
Overall Diameter	3.0/3.05mm

中惠科技有限公司

统一编号：28376870
服务邮箱： service@totalsmart.com.tw
地址：40744 台湾台中市西屯区河南路2段262号10楼之7

Monday – Friday
8:30 am – 5:30 pm CST

导航：多媒体：

台中总公司

电话： 04-27080265 ∣ 传真：04-27080263

台北

电话： 02-89924292 ∣ 传真：02-89929426

公司网站

https://www.totalsmart.tw (繁體 ∣ 简体 ∣ English)
https://www.totalsmart.com.tw (繁體)
https://www.totalsmart.com.cn (简体)

产品链结

影像分析软件
影像量测软件
影像拍照软件
光电特性量测设备
显微数位影像拍照设备
显微镜自动化整合设备
光学显微镜
校正用标准微米尺
显微镜目镜分划板
系统整合与解决方案

支援服务

关於公司
 联络我们
 网络办公室
 产品售后服务
 合作伙伴
 产品询价
 网站建议
 客户投诉信箱

Image-Pro Platform

系统整合解决方案

图像分析解决方案

Packages for Image Analysis

Helpful

TOPCON 辉度/照度量测产品

APACER 辉度/照度量测产品

Prior显微镜整合方案

PRIOR自动化整合产品

Queensgate奈米级定位设备

显微镜专用数码相机

生物/工业光学显微镜

微米尺/标准片/刻划片

電子顯微鏡用TEM網格片
